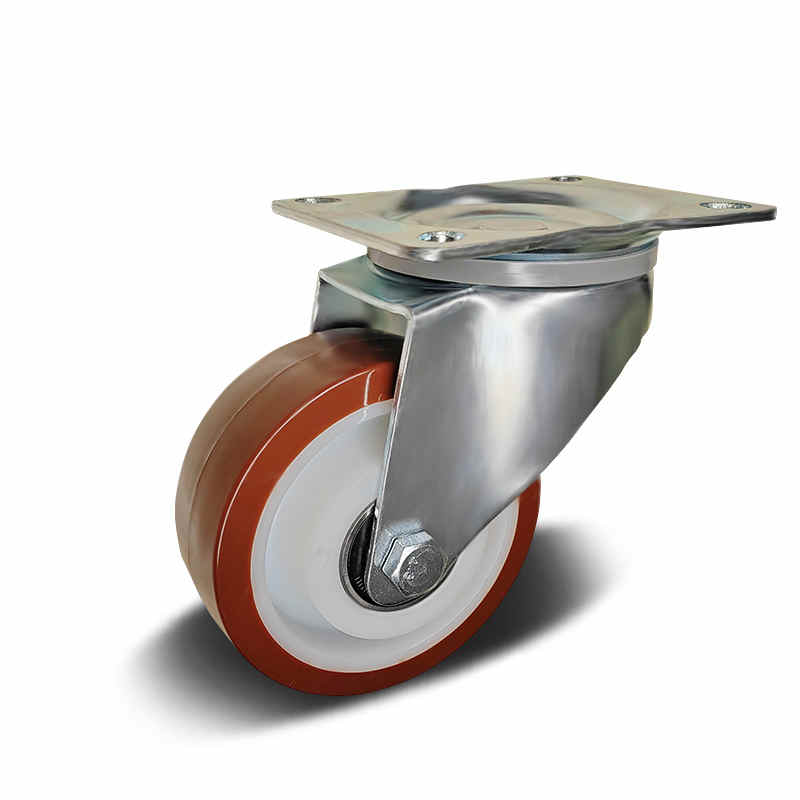

H08 PU+PA6 Wheel Heavy Duty Castor, ball bearing – Swivel

Series / Art No.H.SW08.B35.125; H.SW08.B35.160; H.SW08.B35.200
Key FeaturesHeavy duty castor with PU tread and PA6 (Nylon) core for platform trucks, machinery bases, material handling units, and demanding factory movement. Designed for wear resistance and ssmooth cushioned rolling within the listed load rating.
Wheel Dia.125-200 mm
Load Capacity250-350 kg
MaterialPU
Inquiry Now

Product Specification

OverviewH08 PU+PA6 Wheel Heavy Duty Castor, ball bearing - Swivel covering 125-200 mm wheel diameters and 250-350 kg load capacity.
Use casesSuitable for platform trucks, machinery bases, heavy workshop equipment, material handling units, and demanding factory movement up to the specified load rating.
Material notesThe PU tread and PA6 (Nylon) core support wear resistance, oil resistance, and ssmooth cushioned movement, low rolling resistance, high hardness, and chemical resistance.
Range125-200 mm wheel dia. / 250-350 kg load
MaterialTread: PU / Core: PA6 (Nylon)
ApplicationHeavy Duty Castor
Art No.Wheel No.Wheel Dia. (mm)Wheel Width (mm)Overall Height (mm)Top Plate Size (mm)Plate Hole Centres (mm)Plate Hole Dia. (mm)Load Capacity (kg)Fork Width (mm)Housing Thickness (mm)
H.SW08.B35.125B35-PU wheel,PA6 rim,Red Tread White Core,ball bearing125163135x105105x8011250614.0/3.0
H.SW08.B35.160B35-PU wheel,PA6 rim,Red Tread White Core,ball bearing160200135x105105x8011300614.0/3.0
H.SW08.B35.200B35-PU wheel,PA6 rim,Red Tread White Core,ball bearing200240135x105105x8011350614.0/3.0
