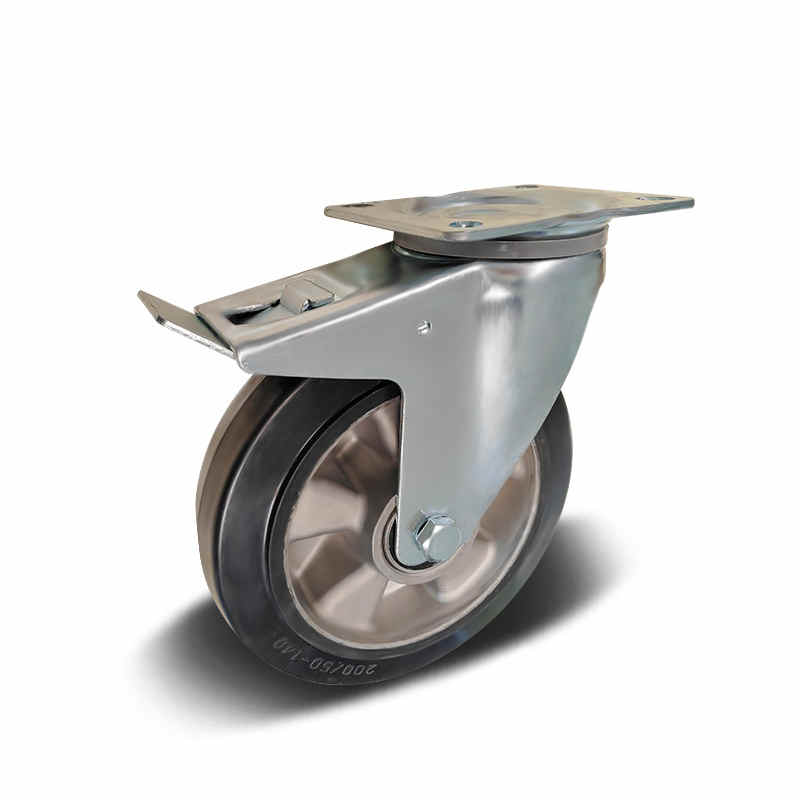

H08 Elastic Rubber+Aluminium Wheel Heavy Duty Castor – Swivel with Brake

Series / Art No.H.SB08.B53.125; H.SB08.B53.160; H.SB08.B53.200
Key FeaturesHeavy duty castor with Elastic Rubber tread and Aluminium core for platform trucks, machinery bases, material handling units, and demanding factory movement. Designed for shock absorption and quiet movement within the listed load rating.
Wheel Dia.125-200 mm
Load Capacity200-450 kg
MaterialElastic Rubber
Inquiry Now

Product Specification

OverviewH08 Elastic Rubber+Aluminium Wheel Heavy Duty Castor - Swivel with Brake covering 125-200 mm wheel diameters and 200-450 kg load capacity.
Use casesSuitable for platform trucks, machinery bases, heavy workshop equipment, material handling units, and demanding factory movement up to the specified load rating.
Material notesThe Elastic Rubber tread and Aluminium core support shock absorption and low-noise movement.
Range125-200 mm wheel dia. / 200-450 kg load
MaterialTread: Elastic Rubber / Core: Aluminium
ApplicationHeavy Duty Castor
Art No.Wheel No.Wheel Dia. (mm)Wheel Width (mm)Overall Height (mm)Top Plate Size (mm)Plate Hole Centres (mm)Plate Hole Dia. (mm)Load Capacity (kg)Fork Width (mm)Housing Thickness (mm)
H.SB08.B53.125B53-Black Elastic rubber wheel,Alu rim, ball bearing125163135x105105x8011200614.0/3.0
H.SB08.B53.160B53-Black Elastic rubber wheel,Alu rim, ball bearing160200135x105105x8011350614.0/3.0
H.SB08.B53.200B53-Black Elastic rubber wheel,Alu rim, ball bearing200240135x105105x8011450614.0/3.0
