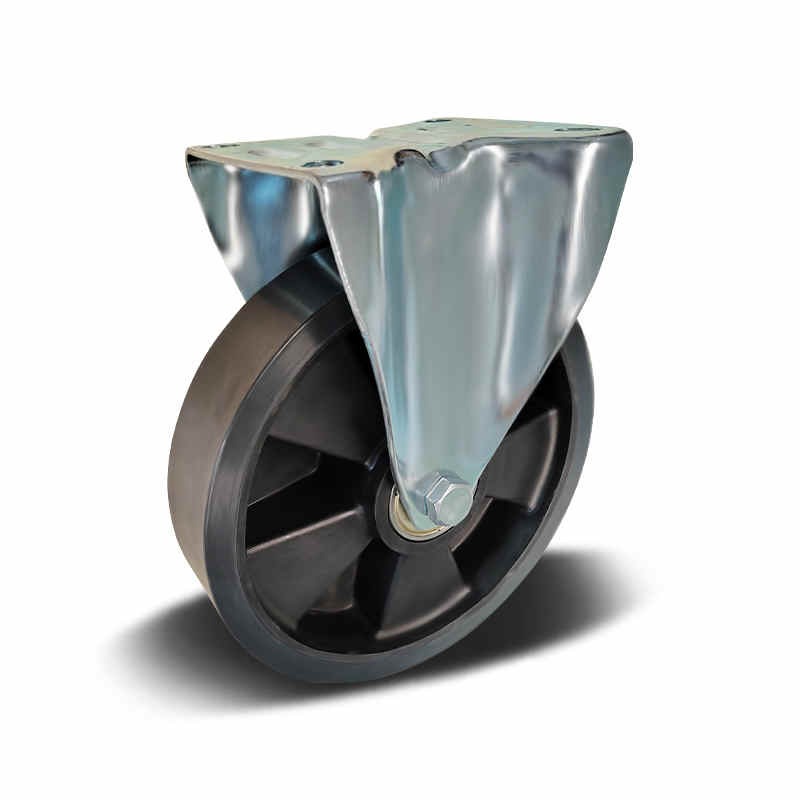

H08 TPU+PA6 Wheel Heavy Duty Castor – Fixed

Series / Art No.H.FX08.B39.125; H.FX08.B39.160; H.FX08.B39.200
Key FeaturesHeavy duty castor with TPU tread and PA6 (Nylon) core for platform trucks, machinery bases, material handling units, and demanding factory movement. Designed for wear resistance and ssmooth cushioned rolling within the listed load rating.
Wheel Dia.125-200 mm
Load Capacity200-450 kg
MaterialTPU
Inquiry Now

Product Specification

OverviewH08 TPU+PA6 Wheel Heavy Duty Castor - Fixed covering 125-200 mm wheel diameters and 200-450 kg load capacity.
Use casesSuitable for platform trucks, machinery bases, heavy workshop equipment, material handling units, and demanding factory movement up to the specified load rating.
Material notesThe TPU tread and PA6 (Nylon) core support wear resistance, oil resistance, and ssmooth cushioned movement, low rolling resistance, high hardness, and chemical resistance.
Range125-200 mm wheel dia. / 200-450 kg load
MaterialTread: TPU / Core: PA6 (Nylon)
ApplicationHeavy Duty Castor
Art No.Wheel No.Wheel Dia. (mm)Wheel Width (mm)Overall Height (mm)Top Plate Size (mm)Plate Hole Centres (mm)Plate Hole Dia. (mm)Load Capacity (kg)Fork Width (mm)Housing Thickness (mm)
H.FX08.B39.125B39-Black TPU wheel,PA6 rim,ball bearing125163135x114105x8011200613
H.FX08.B39.160B39-Black TPU wheel,PA6 rim,ball bearing160200135x114105x8011350613
H.FX08.B39.200B39-Black TPU wheel,PA6 rim,ball bearing200240135x114105x8011450613
