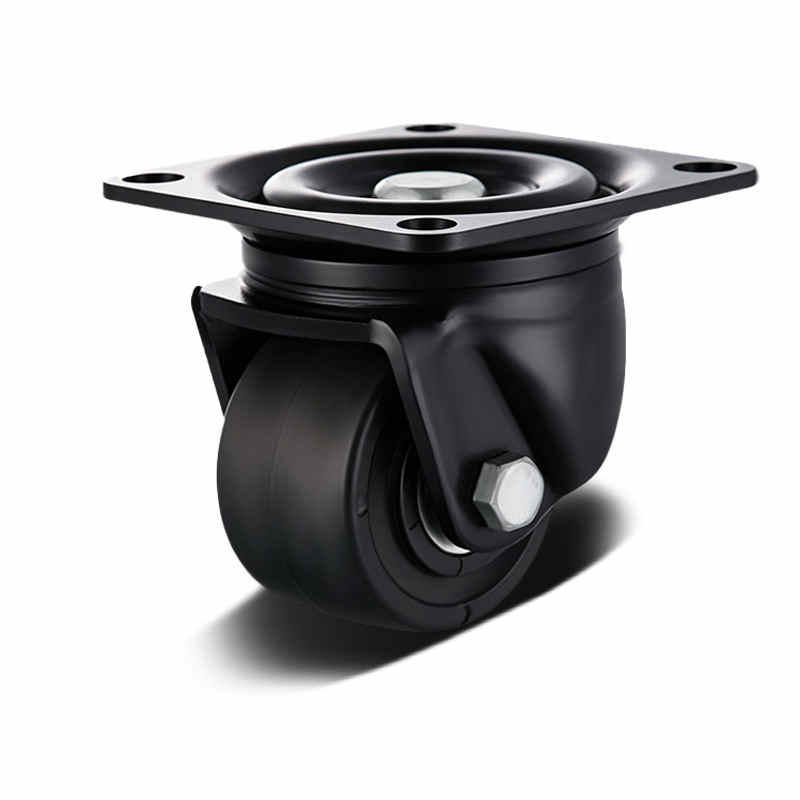

H05, Low Gravity Heavy Duty Castor – Top Plate – Swivel

Series / Art No.H.SW05.R10 / H.SW05.R30 / H.SW05.B30
Key FeaturesHeavy duty castor with PP and PA6 (Nylon) tread and PP and PA6 (Nylon) core for platform trucks, machinery bases, material handling units, and demanding factory movement. Designed for low rolling resistance and chemical resistance within the listed load rating.
Wheel Dia.50-75 mm
Load Capacity250-500 kg
MaterialPP and PA6 (Nylon)
Inquiry Now

Product Specification

OverviewH05, Low Gravity Heavy Duty Castor - Top Plate - Swivel covering 50-75 mm wheel diameters and 250-500 kg load capacity.
Use casesSuitable for platform trucks, machinery bases, heavy workshop equipment, material handling units, and demanding factory movement up to the specified load rating.
Material notesThe PP and PA6 (Nylon) tread and PP and PA6 (Nylon) core support low rolling resistance, high hardness, and chemical resistance.
Range50-75 mm wheel dia. / 250-500 kg load
MaterialTread: PP and PA6 (Nylon) / Core: PP and PA6 (Nylon)
ApplicationHeavy Duty Castor
Art No.Wheel No.Wheel Dia. (mm)Wheel Width (mm)Overall Height (mm)Top Plate Size (mm)Plate Hole Centres (mm)Plate Hole Dia. (mm)Load Capacity (kg)
H.SW05.R10.050R10-Black PP wheel, roller bearing50387984x8464x648.5250
H.SW05.R10.050R10-Black PP wheel, roller bearing503879105x8580x608.5250
H.SW05.R10.065R10-Black PP wheel, roller bearing655095100x10080x809400
H.SW05.R10.065R10-Black PP wheel, roller bearing655095105x8580x609400
H.SW05.R10.075R10-Black PP wheel, roller bearing7550105100x10080x809500
H.SW05.R10.075R10-Black PP wheel, roller bearing7550105105x8580x609500
H.SW05.R30.050R30-Black PA wheel, roller bearing50387984x8464x648.5250
H.SW05.R30.050R30-Black PA wheel, roller bearing503879105x8580x608.5250
H.SW05.R30.065R30-Black PA wheel, roller bearing655095100x10080x809400
H.SW05.R30.065R30-Black PA wheel, roller bearing655095105x8580x609400
H.SW05.R30.075R30-Black PA wheel, roller bearing7550105100x10080x809500
H.SW05.R30.075R30-Black PA wheel, roller bearing7550105105x8580x609500
H.SW05.B30.050B30-Black PA wheel, ball bearing50387984x8464x648.5250
H.SW05.B30.050B30-Black PA wheel, ball bearing503879105x8580x608.5250
H.SW05.B30.065B30-Black PA wheel, ball bearing655095100x10080x809400
H.SW05.B30.065B30-Black PA wheel, ball bearing655095105x8580x609400
H.SW05.B30.075B30-Black PA wheel, ball bearing7550105100x10080x809500
H.SW05.B30.075B30-Black PA wheel, ball bearing7550105105x8580x609500
