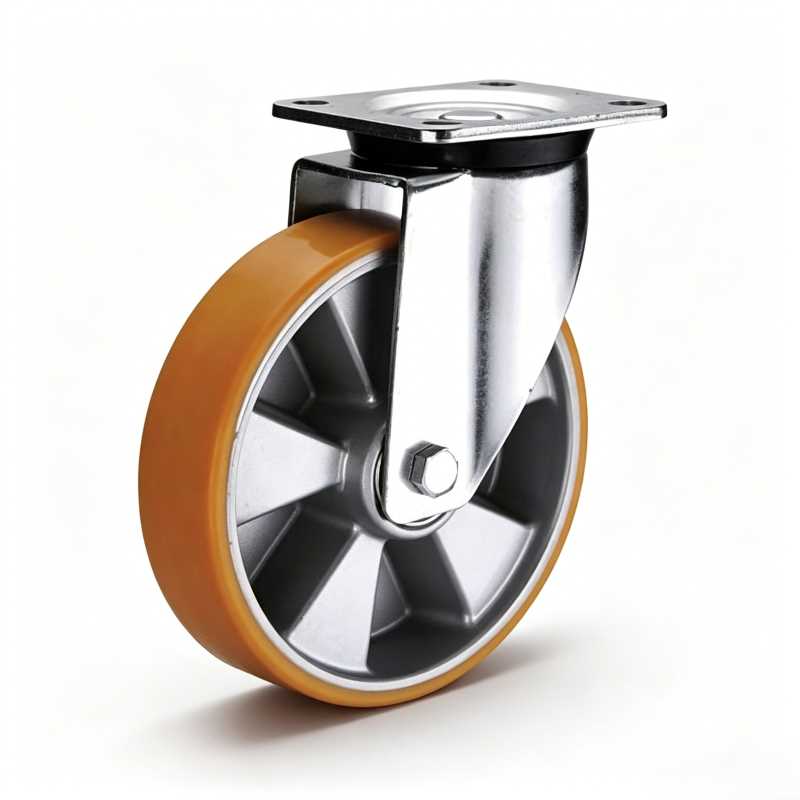

H02 6×4, PU+Aluminium/Cast Iron Heavy Duty Castor – Top Plate – Swivel

Series / Art No.H.SW02.B51 / H.SW02.B61 / H.SW02.R60
Key FeaturesHeavy duty castor with PU tread and Aluminium and Cast Iron core for platform trucks, machinery bases, material handling units, and demanding factory movement. Designed for wear resistance and ssmooth cushioned rolling within the listed load rating.
Wheel Dia.100-250 mm
Load Capacity300-500 kg
MaterialPU
Inquiry Now

Product Specification

OverviewH02 6x4, PU+Aluminium/Cast Iron Heavy Duty Castor - Top Plate - Swivel covering 100-250 mm wheel diameters and 300-500 kg load capacity.
Use casesSuitable for platform trucks, machinery bases, heavy workshop equipment, material handling units, and demanding factory movement up to the specified load rating.
Material notesThe PU tread and Aluminium and Cast Iron core support wear resistance, oil resistance, and ssmooth cushioned movement, high hardness for harsh heavy-duty surfaces.
Range100-250 mm wheel dia. / 300-500 kg load
MaterialTread: PU / Core: Aluminium and Cast Iron
ApplicationHeavy Duty Castor
Art No.Wheel No.Wheel Dia. (mm)Wheel Width (mm)Overall Height (mm)Top Plate Size (mm)Plate Hole Centres (mm)Plate Hole Dia. (mm)Load Capacity (kg)
H.SW02.B51.100B51-PU wheel,Alumium rim,ball bearing10050142135x110105x8012300
H.SW02.B51.125B51-PU wheel,Alumium rim,ball bearing12550164135x110105x8012350
H.SW02.B51.150B51-PU wheel,Alumium rim,ball bearing15050194135x110105x8012400
H.SW02.B51.200B51-PU wheel,Alumium rim,ball bearing20050239135x110105x8012450
H.SW02.B51.250B51-PU wheel,Alumium rim,ball bearing25050292135x110105x8012500
H.SW02.B61.100B61-PU wheel, cast iron rim, Orang tread, ball bearing10050142135x110105x8012300
H.SW02.B61.125B61-PU wheel, cast iron rim, Orang tread, ball bearing12550164135x110105x8012350
H.SW02.B61.150B61-PU wheel, cast iron rim, Orang tread, ball bearing15050194135x110105x8012400
H.SW02.B61.200B61-PU wheel, cast iron rim, Orang tread, ball bearing20050239135x110105x8012450
H.SW02.B61.250B61-PU wheel, cast iron rim, Orang tread, ball bearing25050292135x110105x8012500
H.SW02.R60.100R60-Cast iron wheel,roller bearing10050142135x110105x8012300
H.SW02.R60.125R60-Cast iron wheel,roller bearing12550164135x110105x8012350
H.SW02.R60.150R60-Cast iron wheel,roller bearing15050194135x110105x8012400
H.SW02.R60.200R60-Cast iron wheel,roller bearing20050239135x110105x8012500
