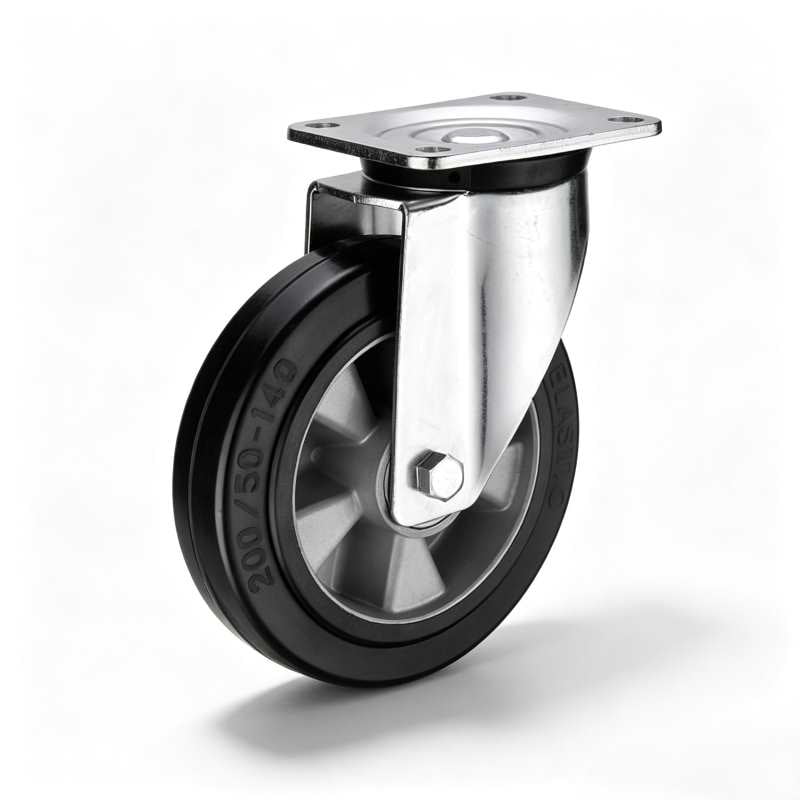

H02 6×4, Elastic Rubber+Aluminium/PA Heavy Duty Castor – Top Plate – Swivel

Series / Art No.H.SW02.R13 / H.SW02.B53 / H.SW02.B30
Key FeaturesHeavy duty castor with Elastic Rubber and PA6 (Nylon) tread and PP, Aluminium, and PA6 (Nylon) core for platform trucks, machinery bases, material handling units, and demanding factory movement. Designed for shock absorption and quiet movement within the listed load rating.
Wheel Dia.100-250 mm
Load Capacity200-550 kg
MaterialElastic Rubber and PA6 (Nylon)
Inquiry Now

Product Specification

OverviewH02 6x4, Elastic Rubber+Aluminium/PA Heavy Duty Castor - Top Plate - Swivel covering 100-250 mm wheel diameters and 200-550 kg load capacity.
Use casesSuitable for platform trucks, machinery bases, heavy workshop equipment, material handling units, and demanding factory movement up to the specified load rating.
Material notesThe Elastic Rubber and PA6 (Nylon) tread and PP, Aluminium, and PA6 (Nylon) core support shock absorption and low-noise movement, low rolling resistance, high hardness, and chemical resistance.
Range100-250 mm wheel dia. / 200-550 kg load
MaterialTread: Elastic Rubber and PA6 (Nylon) / Core: PP, Aluminium, and PA6 (Nylon)
ApplicationHeavy Duty Castor
Art No.Wheel No.Wheel Dia. (mm)Wheel Width (mm)Overall Height (mm)Top Plate Size (mm)Plate Hole Centres (mm)Plate Hole Dia. (mm)Load Capacity (kg)
H.SW02.R13.125R13-Elastic rubber wheel,PP rim, Blue Tread, Black Core,roller bearing12550164135x110105x8012200
H.SW02.R13.150R13-Elastic rubber wheel,PP rim, Blue Tread, Black Core,roller bearing15050194135x110105x8012300
H.SW02.R13.200R13-Elastic rubber wheel,PP rim, Blue Tread, Black Core,roller bearing20050239135x110105x8012400
H.SW02.R13.250R13-Elastic rubber wheel,PP rim, Blue Tread, Black Core,roller bearing25050292135x110105x8012500
H.SW02.B53.125B53-Black Elastic rubber wheel,Alu rim, ball bearing12550164135x110105x8012200
H.SW02.B53.150B53-Black Elastic rubber wheel,Alu rim, ball bearing15050194135x110105x8012300
H.SW02.B53.200B53-Black Elastic rubber wheel,Alu rim, ball bearing20050239135x110105x8012400
H.SW02.B53.250B53-Black Elastic rubber wheel,Alu rim, ball bearing25050292135x110105x8012500
H.SW02.B30.100B30-White PA wheel,ball bearing10050142135x110105x8012250
H.SW02.B30.125B30-White PA wheel,ball bearing12550164135x110105x8012350
H.SW02.B30.150B30-White PA wheel,ball bearing15050194135x110105x8012450
H.SW02.B30.200B30-White PA wheel,ball bearing20050239135x110105x8012550
