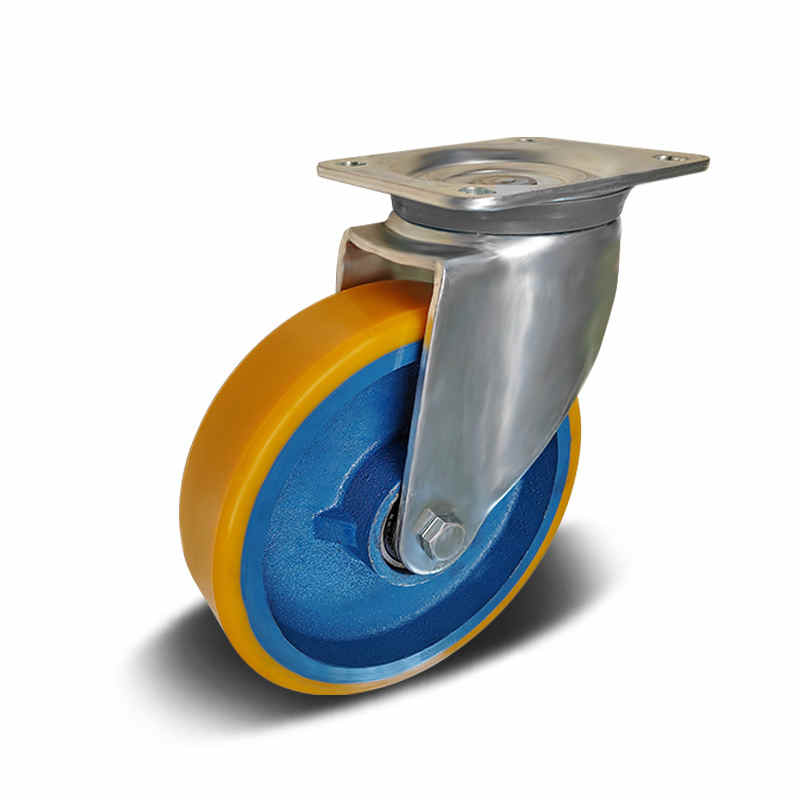

H01 PU+Cast Iron Wheel Heavy Duty Castor, ball bearing – Swivel

Series / Art No.H.SW01.B61.125; H.SW01.B61.160; H.SW01.B61.200; H.SW01.B61.250
Key FeaturesHeavy duty castor with PU tread and Cast Iron core for platform trucks, machinery bases, material handling units, and demanding factory movement. Designed for wear resistance and ssmooth cushioned rolling within the listed load rating.
Wheel Dia.125-250 mm
Load Capacity500-1000 kg
MaterialPU
Inquiry Now

Product Specification

OverviewH01 PU+Cast Iron Wheel Heavy Duty Castor, ball bearing - Swivel covering 125-250 mm wheel diameters and 500-1000 kg load capacity.
Use casesSuitable for platform trucks, machinery bases, heavy workshop equipment, material handling units, and demanding factory movement up to the specified load rating.
Material notesThe PU tread and Cast Iron core support wear resistance, oil resistance, and ssmooth cushioned movement, high hardness for harsh heavy-duty surfaces.
Range125-250 mm wheel dia. / 500-1000 kg load
MaterialTread: PU / Core: Cast Iron
ApplicationHeavy Duty Castor
Art No.Wheel No.Wheel Dia. (mm)Wheel Width (mm)Overall Height (mm)Top Plate Size (mm)Plate Hole Centres (mm)Plate Hole Dia. (mm)Load Capacity (kg)Fork Width (mm)Housing Thickness (mm)
H.SW01.B61.125B61-PU roller, cast iron rim, Orange tread, blue rim, ball bearing125178135x110105x8011500625.0/5.0
H.SW01.B61.160B61-PU roller, cast iron rim, Orange tread, blue rim, ball bearing160205135x110105x8011700625.0/5.0
H.SW01.B61.200B61-PU roller, cast iron rim, Orange tread, blue rim, ball bearing200245135x110105x80111000625.0/5.0
H.SW01.B61.250B61-PU roller, cast iron rim, Orange tread, blue rim, ball bearing250290135x110105x80111000625.0/5.0
