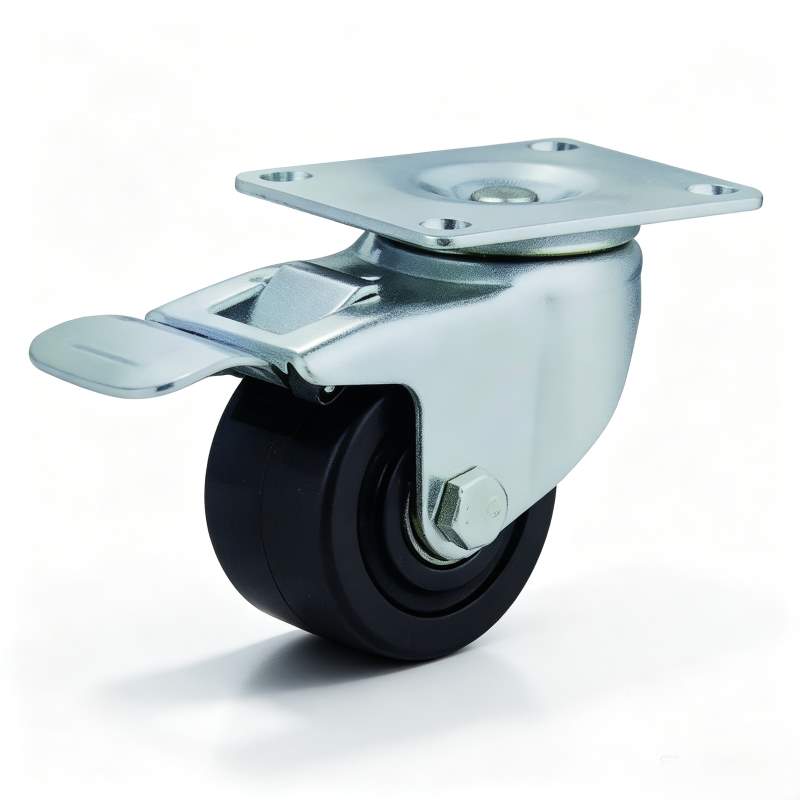

H04, Low Gravity Heavy Duty Castor – Top Plate – Swivel with Brake

Series / Art No.H.SB04.B10 / H.SB04.B30

Key FeaturesHeavy duty castor with PP and PA6 (Nylon) tread and PP and PA6 (Nylon) core for platform trucks, machinery bases, material handling units, and demanding factory movement. Designed for low rolling resistance and chemical resistance within the listed load rating.

Wheel Dia.50-75 mm

Load Capacity100-200 kg

MaterialPP and PA6 (Nylon)

Inquiry Now

Product Specification

OverviewH04, Low Gravity Heavy Duty Castor - Top Plate - Swivel with Brake covering 50-75 mm wheel diameters and 100-200 kg load capacity.

Use casesSuitable for platform trucks, machinery bases, heavy workshop equipment, material handling units, and demanding factory movement up to the specified load rating.

Material notesThe PP and PA6 (Nylon) tread and PP and PA6 (Nylon) core support low rolling resistance, high hardness, and chemical resistance.

Range50-75 mm wheel dia. / 100-200 kg load

MaterialTread: PP and PA6 (Nylon) / Core: PP and PA6 (Nylon)

ApplicationHeavy Duty Castor

Art No.	Wheel No.	Wheel Dia. (mm)	Wheel Width (mm)	Overall Height (mm)	Top Plate Size (mm)	Plate Hole Centres (mm)	Plate Hole Dia. (mm)	Load Capacity (kg)
H.SB04.B10.050	B10-Black PP wheel, roller bearing	50	30	68	71x54	54x36	9	100
H.SB04.B10.065	B10-Black PP wheel, roller bearing	65	38	81	92x65	73x45	9	150
H.SB04.B10.075	B10-Black PP wheel, roller bearing	75	50	101	101x82	80x60	9	200
H.SB04.B30.050	B30-Black PA wheel, ball bearing	50	30	68	71x54	54x36	9	100
H.SB04.B30.065	B30-Black PA wheel, ball bearing	65	38	81	92x65	73x45	9	150
H.SB04.B30.075	B30-Black PA wheel, ball bearing	75	50	101	101x82	80x60	9	200
