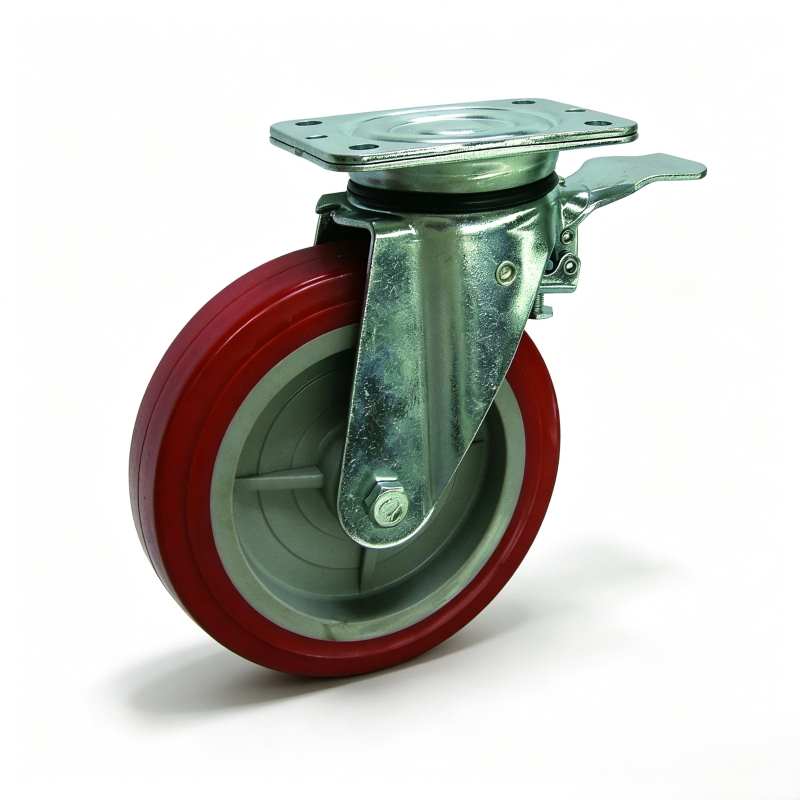

H03, PU/Cast Iron Heavy Duty Castor – Top Plate – Swivel with Brake

Series / Art No.H.SB03.B51 / H.SB03.B61 / H.SB03.R60
Key FeaturesHeavy duty castor with PU tread and Aluminium and Cast Iron core for platform trucks, machinery bases, material handling units, and demanding factory movement. Designed for wear resistance and ssmooth cushioned rolling within the listed load rating.
Wheel Dia.100-250 mm
Load Capacity120-300 kg
MaterialPU
Inquiry Now

Product Specification

OverviewH03, PU/Cast Iron Heavy Duty Castor - Top Plate - Swivel with Brake covering 100-250 mm wheel diameters and 120-300 kg load capacity.
Use casesSuitable for platform trucks, machinery bases, heavy workshop equipment, material handling units, and demanding factory movement up to the specified load rating.
Material notesThe PU tread and Aluminium and Cast Iron core support wear resistance, oil resistance, and ssmooth cushioned movement, high hardness for harsh heavy-duty surfaces.
Range100-250 mm wheel dia. / 120-300 kg load
MaterialTread: PU / Core: Aluminium and Cast Iron
ApplicationHeavy Duty Castor
Art No.Wheel No.Wheel Dia. (mm)Wheel Width (mm)Overall Height (mm)Top Plate Size (mm)Plate Hole Centres (mm)Plate Hole Dia. (mm)Load Capacity (kg)
H.SB03.B51.100B51-PU wheel,Alumium rim,ball bearing10050153138x110105x7811120
H.SB03.B51.125B51-PU wheel,Alumium rim,ball bearing12550183138x110105x7811150
H.SB03.B51.160B51-PU wheel,Alumium rim,ball bearing16050214138x110105x7811200
H.SB03.B51.200B51-PU wheel,Alumium rim,ball bearing20050255138x110105x7811250
H.SB03.B51.250B51-PU wheel,Alumium rim,ball bearing25050303138x110105x7811300
H.SB03.B61.100B61-PU wheel, cast iron rim, Orang tread, ball bearing10050153138x110105x7811120
H.SB03.B61.125B61-PU wheel, cast iron rim, Orang tread, ball bearing12550183138x110105x7811150
H.SB03.B61.160B61-PU wheel, cast iron rim, Orang tread, ball bearing16050214138x110105x7811200
H.SB03.B61.200B61-PU wheel, cast iron rim, Orang tread, ball bearing20050255138x110105x7811250
H.SB03.B61.250B61-PU wheel, cast iron rim, Orang tread, ball bearing25050303138x110105x7811300
H.SB03.R60.100R60-Cast iron wheel,roller bearing10050153138x110105x7811120
H.SB03.R60.125R60-Cast iron wheel,roller bearing12550183138x110105x7811150
H.SB03.R60.160R60-Cast iron wheel,roller bearing16050214138x110105x7811200
H.SB03.R60.200R60-Cast iron wheel,roller bearing20050255138x110105x7811250
