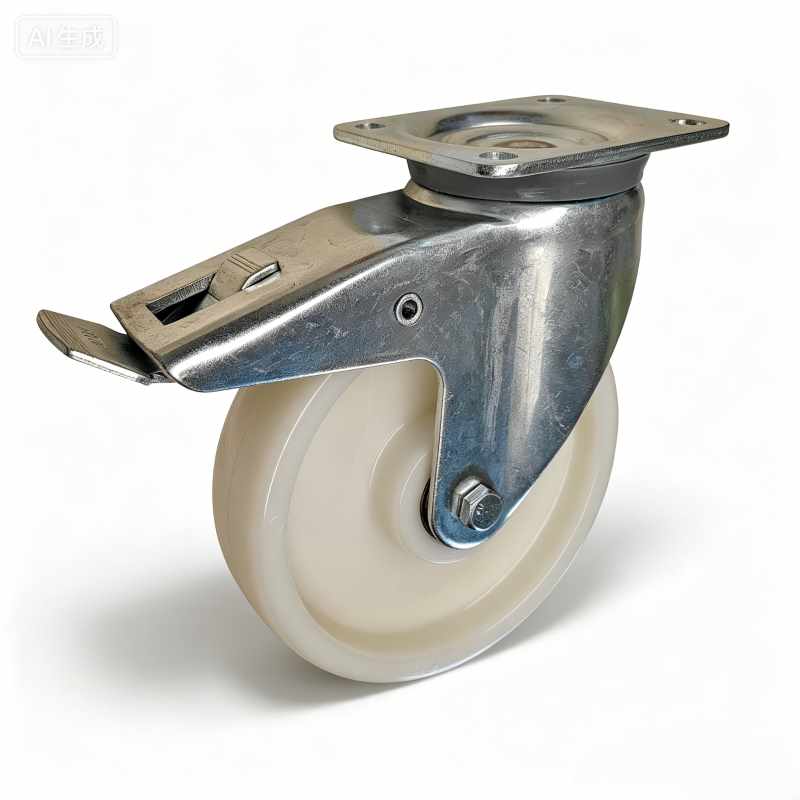

H01 White PA6 Wheel Heavy Duty Castor, ball bearing – Swivel with Brake

Series / Art No.H.SB01.B30.125; H.SB01.B30.160; H.SB01.B30.200; H.SB01.B30.250
Key FeaturesHeavy duty castor with PA6 (Nylon) tread and PA6 (Nylon) core for platform trucks, machinery bases, material handling units, and demanding factory movement. Designed for low rolling resistance and chemical resistance within the listed load rating.
Wheel Dia.125-250 mm
Load Capacity600-1000 kg
MaterialPA6 (Nylon)
Inquiry Now

Product Specification

OverviewH01 White PA6 Wheel Heavy Duty Castor, ball bearing - Swivel with Brake covering 125-250 mm wheel diameters and 600-1000 kg load capacity.
Use casesSuitable for platform trucks, machinery bases, heavy workshop equipment, material handling units, and demanding factory movement up to the specified load rating.
Material notesThe PA6 (Nylon) tread and PA6 (Nylon) core support low rolling resistance, high hardness, and chemical resistance.
Range125-250 mm wheel dia. / 600-1000 kg load
MaterialTread: PA6 (Nylon) / Core: PA6 (Nylon)
ApplicationHeavy Duty Castor
Art No.Wheel No.Wheel Dia. (mm)Wheel Width (mm)Overall Height (mm)Top Plate Size (mm)Plate Hole Centres (mm)Plate Hole Dia. (mm)Load Capacity (kg)Fork Width (mm)Housing Thickness (mm)
H.SB01.B30.125B30-White PA6 wheel,ball bearing125178135x110105x8011600625.0/5.0
H.SB01.B30.160B30-White PA6 wheel,ball bearing160205135x110105x8011800625.0/5.0
H.SB01.B30.200B30-White PA6 wheel,ball bearing200245135x110105x80111000625.0/5.0
H.SB01.B30.250B30-White PA6 wheel,ball bearing250290135x110105x80111000625.0/5.0
