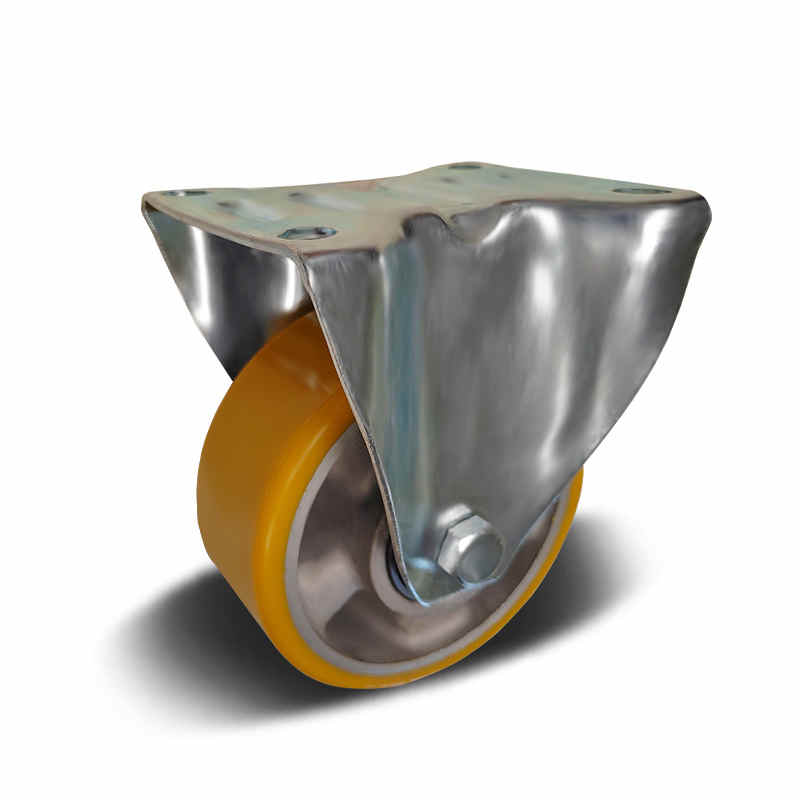

H08 PU+Aluminium Wheel Heavy Duty Castor – Fixed

Series / Art No.H.FX08.B51.125; H.FX08.B51.160; H.FX08.B51.200
Key FeaturesHeavy duty castor with PU tread and Aluminium core for platform trucks, machinery bases, material handling units, and demanding factory movement. Designed for wear resistance and ssmooth cushioned rolling within the listed load rating.
Wheel Dia.125-200 mm
Load Capacity400-500 kg
MaterialPU
Inquiry Now

Product Specification

OverviewH08 PU+Aluminium Wheel Heavy Duty Castor - Fixed covering 125-200 mm wheel diameters and 400-500 kg load capacity.
Use casesSuitable for platform trucks, machinery bases, heavy workshop equipment, material handling units, and demanding factory movement up to the specified load rating.
Material notesThe PU tread and Aluminium core support wear resistance, oil resistance, and ssmooth cushioned movement.
Range125-200 mm wheel dia. / 400-500 kg load
MaterialTread: PU / Core: Aluminium
ApplicationHeavy Duty Castor
Art No.Wheel No.Wheel Dia. (mm)Wheel Width (mm)Overall Height (mm)Top Plate Size (mm)Plate Hole Centres (mm)Plate Hole Dia. (mm)Load Capacity (kg)Fork Width (mm)Housing Thickness (mm)
H.FX08.B51.125B51-PU wheel,Alumium rim,ball bearing125163135x114105x8011400613
H.FX08.B51.160B51-PU wheel,Alumium rim,ball bearing160200135x114105x8011450613
H.FX08.B51.200B51-PU wheel,Alumium rim,ball bearing200240135x114105x8011500613
