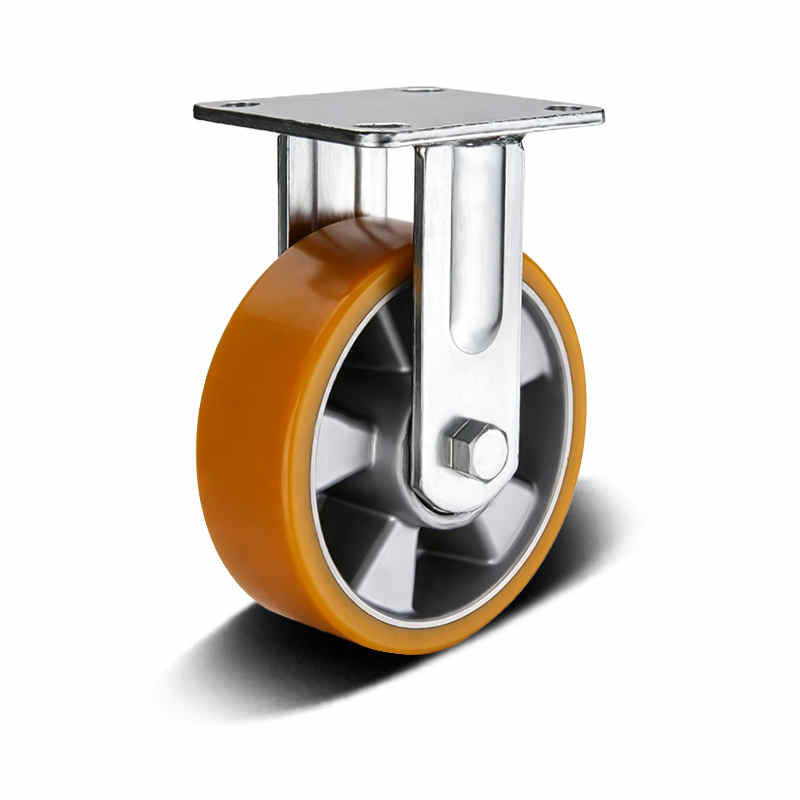

H06, PU/Elastic Rubber/PA Heavy Duty Castor – Top Plate – Fixed

Series / Art No.H.FX06.B51 / H.FX06.B53 / H.FX06.B30
Key FeaturesHeavy duty castor with PU, Elastic Rubber, and PA6 (Nylon) tread and Aluminium and PA6 (Nylon) core for platform trucks, machinery bases, material handling units, and demanding factory movement. Designed for shock absorption and quiet movement within the listed load rating.
Wheel Dia.100-250 mm
Load Capacity200-500 kg
MaterialPU, Elastic Rubber, and PA6 (Nylon)
Inquiry Now

Product Specification

OverviewH06, PU/Elastic Rubber/PA Heavy Duty Castor - Top Plate - Fixed covering 100-250 mm wheel diameters and 200-500 kg load capacity.
Use casesSuitable for platform trucks, machinery bases, heavy workshop equipment, material handling units, and demanding factory movement up to the specified load rating.
Material notesThe PU, Elastic Rubber, and PA6 (Nylon) tread and Aluminium and PA6 (Nylon) core support shock absorption and low-noise movement, wear resistance, oil resistance, and ssmooth cushioned movement.
Range100-250 mm wheel dia. / 200-500 kg load
MaterialTread: PU, Elastic Rubber, and PA6 (Nylon) / Core: Aluminium and PA6 (Nylon)
ApplicationHeavy Duty Castor
Art No.Wheel No.Wheel Dia. (mm)Wheel Width (mm)Overall Height (mm)Top Plate Size (mm)Plate Hole Centres (mm)Plate Hole Dia. (mm)Load Capacity (kg)
H.FX06.B51.100B51-PU wheel,Alumium rim,ball bearing10050142115x10072x8510300
H.FX06.B51.100B51-PU wheel,Alumium rim,ball bearing10050142135x110105x8010300
H.FX06.B51.125B51-PU wheel,Alumium rim,ball bearing12550164115x10072x8510350
H.FX06.B51.125B51-PU wheel,Alumium rim,ball bearing12550164135x110105x8010350
H.FX06.B51.150B51-PU wheel,Alumium rim,ball bearing15050190115x10072x8510400
H.FX06.B51.150B51-PU wheel,Alumium rim,ball bearing15050190135x110105x8010400
H.FX06.B51.200B51-PU wheel,Alumium rim,ball bearing20050240115x10072x8510450
H.FX06.B51.200B51-PU wheel,Alumium rim,ball bearing20050240135x110105x8010450
H.FX06.B51.250B51-PU wheel,Alumium rim,ball bearing25050280115x10072x8510500
H.FX06.B51.250B51-PU wheel,Alumium rim,ball bearing25050280135x110105x8010500
H.FX06.B53.125B53-Black Elastic rubber wheel,Alu rim, ball bearing12550164115x10072x8510200
H.FX06.B53.125B53-Black Elastic rubber wheel,Alu rim, ball bearing12550164135x110105x8010200
H.FX06.B53.150B53-Black Elastic rubber wheel,Alu rim, ball bearing15050190115x10072x8510250
H.FX06.B53.150B53-Black Elastic rubber wheel,Alu rim, ball bearing15050190135x110105x8010250
H.FX06.B53.200B53-Black Elastic rubber wheel,Alu rim, ball bearing20050240115x10072x8510300
H.FX06.B53.200B53-Black Elastic rubber wheel,Alu rim, ball bearing20050240135x110105x8010300
H.FX06.B53.250B53-Black Elastic rubber wheel,Alu rim, ball bearing25050280115x10072x8510350
H.FX06.B53.250B53-Black Elastic rubber wheel,Alu rim, ball bearing25050280135x110105x8010350
H.FX06.B30.100B30-White PA Wheel,ball bearing10050142115x10072x8510300
H.FX06.B30.100B30-White PA Wheel,ball bearing10050142135x110105x8010300
H.FX06.B30.125B30-White PA Wheel,ball bearing12550164115x10072x8510350
H.FX06.B30.125B30-White PA Wheel,ball bearing12550164135x110105x8010350
H.FX06.B30.150B30-White PA Wheel,ball bearing15050190115x10072x8510400
H.FX06.B30.150B30-White PA Wheel,ball bearing15050190135x110105x8010400
H.FX06.B30.200B30-White PA Wheel,ball bearing20050240115x10072x8510450
H.FX06.B30.200B30-White PA Wheel,ball bearing20050240135x110105x8010450
