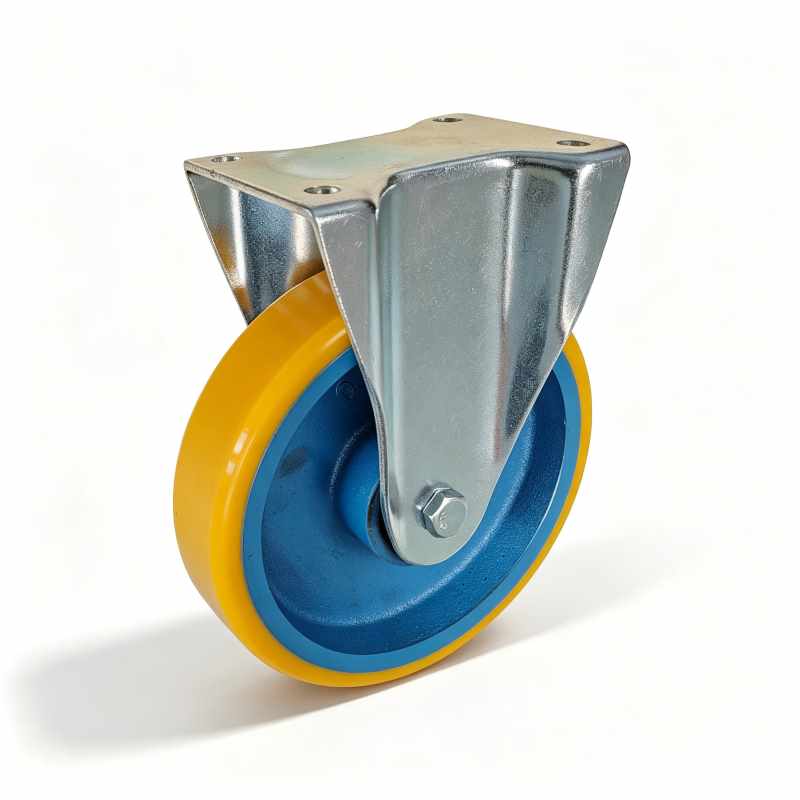

H01 PU+Cast Iron Wheel Heavy Duty Castor, ball bearing – Fixed

Series / Art No.H.FX01.B61.125; H.FX01.B61.160; H.FX01.B61.200; H.FX01.B61.250

Key FeaturesHeavy duty castor with PU tread and Cast Iron core for platform trucks, machinery bases, material handling units, and demanding factory movement. Designed for wear resistance and ssmooth cushioned rolling within the listed load rating.

Wheel Dia.125-250 mm

Load Capacity500-1000 kg

MaterialPU

Inquiry Now

Product Specification

OverviewH01 PU+Cast Iron Wheel Heavy Duty Castor, ball bearing - Fixed covering 125-250 mm wheel diameters and 500-1000 kg load capacity.

Use casesSuitable for platform trucks, machinery bases, heavy workshop equipment, material handling units, and demanding factory movement up to the specified load rating.

Material notesThe PU tread and Cast Iron core support wear resistance, oil resistance, and ssmooth cushioned movement, high hardness for harsh heavy-duty surfaces.

Range125-250 mm wheel dia. / 500-1000 kg load

MaterialTread: PU / Core: Cast Iron

ApplicationHeavy Duty Castor

Art No.	Wheel No.	Wheel Dia. (mm)	Overall Height (mm)	Top Plate Size (mm)	Plate Hole Centres (mm)	Plate Hole Dia. (mm)	Load Capacity (kg)	Fork Width (mm)	Housing Thickness (mm)
H.FX01.B61.125	B61-PU roller, cast iron rim, Orange tread, blue rim, ball bearing	125	178	135x110	105x80	11	500	62	4
H.FX01.B61.160	B61-PU roller, cast iron rim, Orange tread, blue rim, ball bearing	160	205	135x110	105x80	11	700	62	4
H.FX01.B61.200	B61-PU roller, cast iron rim, Orange tread, blue rim, ball bearing	200	245	135x110	105x80	11	1000	62	4
H.FX01.B61.250	B61-PU roller, cast iron rim, Orange tread, blue rim, ball bearing	250	290	135x110	105x80	11	1000	62	4
