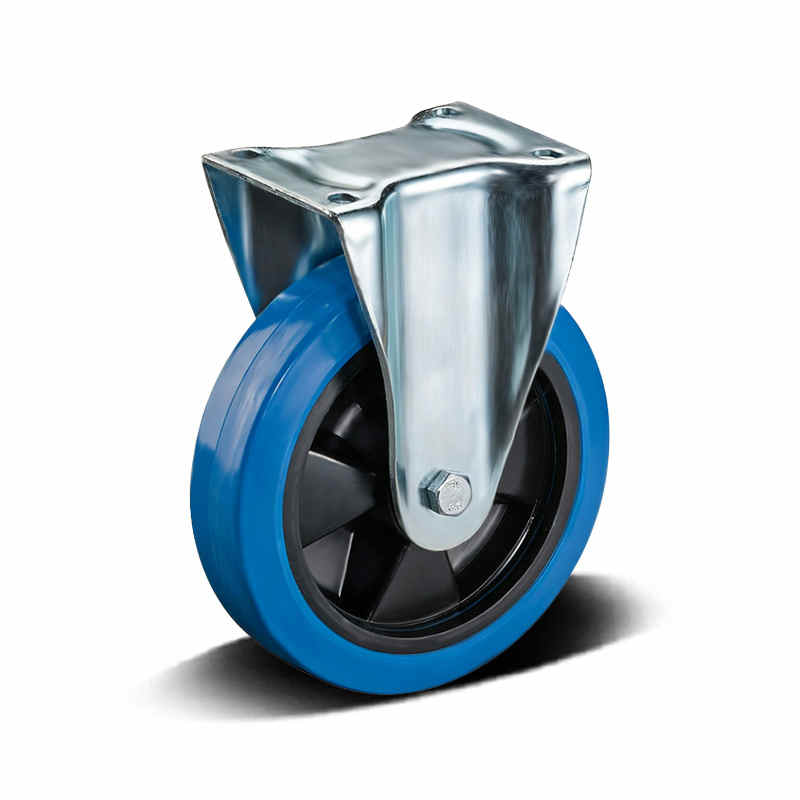

H01 5×5, Elastic Rubber/PP/PA Heavy Duty Castor – Top Plate – Fixed

Series / Art No.H.FX01.R13 / H.FX01.B19 / H.FX01.B30
Key FeaturesHeavy duty castor with Elastic Rubber, PU, and PA6 (Nylon) tread and PP and PA6 (Nylon) core for platform trucks, machinery bases, material handling units, and demanding factory movement. Designed for shock absorption and quiet movement within the listed load rating.
Wheel Dia.125-200 mm
Load Capacity200-500 kg
MaterialElastic Rubber, PU, and PA6 (Nylon)
Inquiry Now

Product Specification

OverviewH01 5x5, Elastic Rubber/PP/PA Heavy Duty Castor - Top Plate - Fixed covering 125-200 mm wheel diameters and 200-500 kg load capacity.
Use casesSuitable for platform trucks, machinery bases, heavy workshop equipment, material handling units, and demanding factory movement up to the specified load rating.
Material notesThe Elastic Rubber, PU, and PA6 (Nylon) tread and PP and PA6 (Nylon) core support shock absorption and low-noise movement, wear resistance, oil resistance, and ssmooth cushioned movement.
Range125-200 mm wheel dia. / 200-500 kg load
MaterialTread: Elastic Rubber, PU, and PA6 (Nylon) / Core: PP and PA6 (Nylon)
ApplicationHeavy Duty Castor
Art No.Wheel No.Wheel Dia. (mm)Wheel Width (mm)Overall Height (mm)Top Plate Size (mm)Plate Hole Centres (mm)Plate Hole Dia. (mm)Load Capacity (kg)
H.FX01.R13.125R13-Elastic rubber wheel,PP rim, Blue Tread, Black Core,roller bearing12550178135x110105x8011200
H.FX01.R13.160R13-Elastic rubber wheel,PP rim, Blue Tread, Black Core,roller bearing16050205135x110105x8011250
H.FX01.R13.200R13-Elastic rubber wheel,PP rim, Blue Tread, Black Core,roller bearing20050245135x110105x8011300
H.FX01.B19.125B19-PU wheel,PP rim,ball bearing12550178135x110105x8011200
H.FX01.B19.150B19-PU wheel,PP rim,ball bearing15050195135x110105x8011250
H.FX01.B19.200B19-PU wheel,PP rim,ball bearing20050245135x110105x8011300
H.FX01.B30.125B30-White PA wheel,ball bearing12550178135x110105x8011300
H.FX01.B30.150B30-White PA wheel,ball bearing15050195135x110105x8011400
H.FX01.B30.200B30-White PA wheel,ball bearing20050245135x110105x8011500
