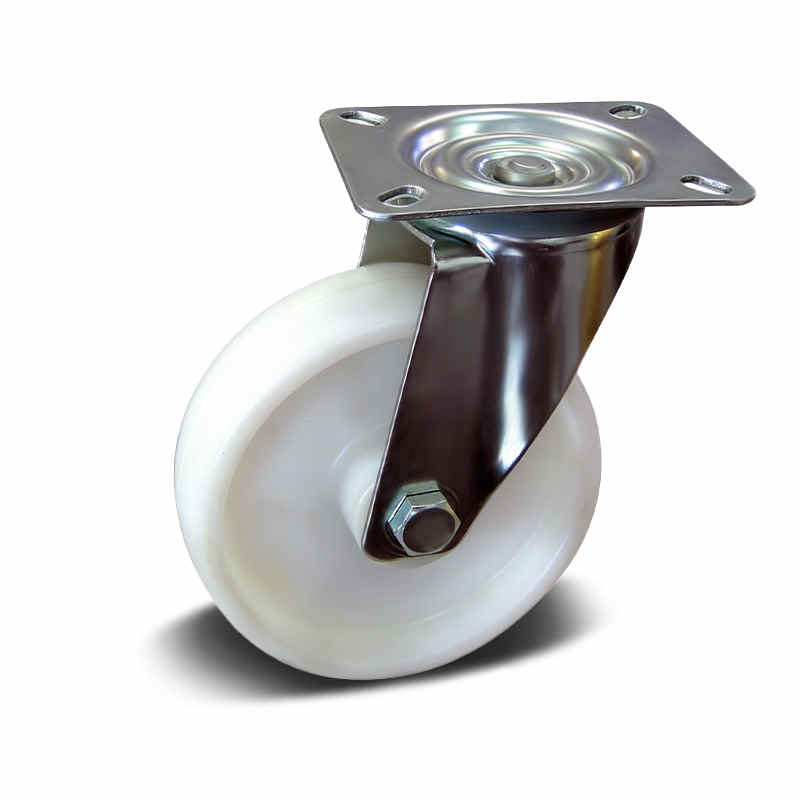

PU and PA with PP Core Top Plate Swivel Industrial Castor, 80-200mm, 50-200kg

Series / Art No.I.SW01.R10 / I.SW01.P30 / I.SW01.P19
Key FeaturesStandard industrial castor with PU/PA tread and PP core for workshop trolleys, factory carts, handling equipment, and workbenches. Designed for wear resistance and ssmooth cushioned rolling with dependable daily load performance.
Wheel Dia.80-200 mm
Load Capacity50-200 kg
MaterialPU/PA
Inquiry Now

Product Specification

OverviewPU and PA with PP Core Top Plate Swivel Industrial Castor, 80-200mm, 50-200kg covering 80-200 mm wheel diameters and 50-200 kg load capacity.
Use casesSuitable for workshop trolleys, factory carts, handling equipment, workbenches, and general industrial movement on concrete or mixed factory floors.
Material notesThe PU/PA tread and PP core support wear resistance, oil resistance, and ssmooth cushioned movement, low rolling resistance, high hardness, and chemical resistance.
Range80-200 mm wheel dia. / 50-200 kg load
MaterialTread: PU/PA / Core: PP
ApplicationIndustrial Castor
Art No.Wheel Dia. (mm)Overall Height (mm)Tread MaterialCore MaterialLoad Capacity (kg)BearingWheel Width (mm)Hub Length (mm)Top Plate Size (mm)Plate Hole Centres (mm)Plate Hole Dia. (mm)Bolt Hole Dia. (mm)Fork Width (mm)Housing Thickness (mm)Available Colors
I.SW01.R10.08080106PP-50Roller Bearing25105x8080x609
I.SW01.R10.100100128PP-70Roller Bearing35105x8080x609
I.SW01.R10.125125156PP-100Roller Bearing37105x8080x609
I.SW01.R10.150150190PP-135Roller Bearing40135x100105x8011
I.SW01.R10.200200235PP-200Roller Bearing50135x110105x8011
I.SW01.P30.08080106PA-50Plain Bearing25105x8080x609
I.SW01.P30.100100128PA-70Plain Bearing35105x8080x609
I.SW01.P30.125125156PA-100Plain Bearing37105x8080x609
I.SW01.P30.150150190PA-135Plain Bearing40135x100105x8011
I.SW01.P30.200200235PA-200Plain Bearing50135x110105x8011
I.SW01.P19.08080106PUPP50Plain Bearing25105x8080x609
I.SW01.P19.100100128PUPP70Plain Bearing35105x8080x609
I.SW01.P19.125125156PUPP100Plain Bearing37105x8080x609
I.SW01.P19.150150190PUPP135Plain Bearing40135x100105x8011
I.SW01.P19.200200235PUPP200Plain Bearing50135x110105x8011
