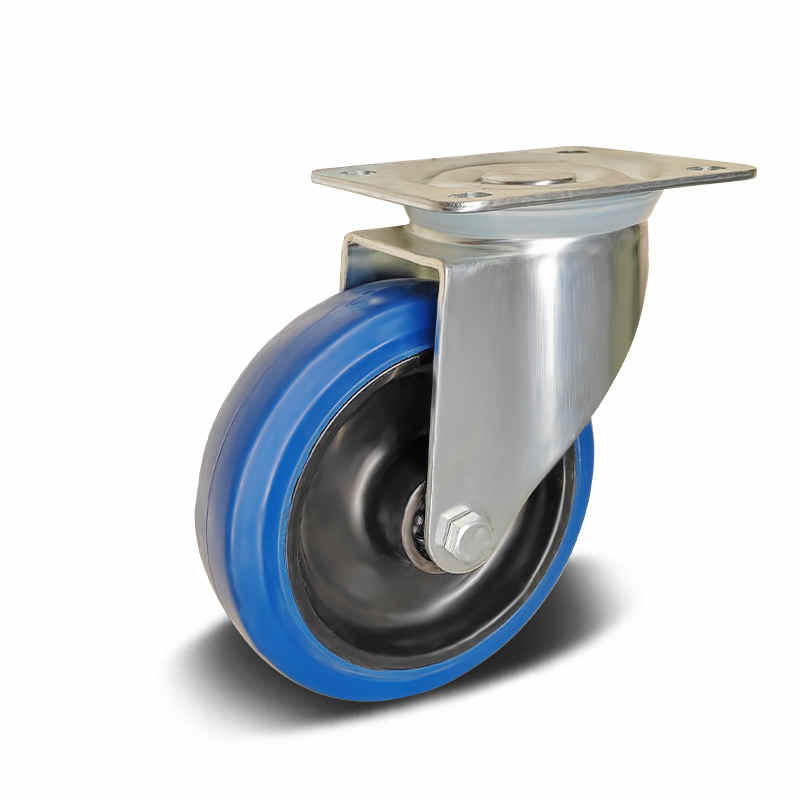

Elastic Rubber with PA6 Core Top Plate Swivel Industrial Castor, 100-125mm, 160-200kg

Series / Art No.I.SW02.R13.100; I.SW02.R13.125
Key FeaturesStandard industrial castor with Elastic Rubber tread and PA6 core for workshop trolleys, factory carts, handling equipment, and workbenches. Designed for shock absorption and quiet movement with dependable daily load performance.
Wheel Dia.100-125 mm
Load Capacity160-200 kg
MaterialElastic Rubber
Inquiry Now

Product Specification

OverviewElastic Rubber with PA6 Core Top Plate Swivel Industrial Castor, 100-125mm, 160-200kg covering 100-125 mm wheel diameters and 160-200 kg load capacity.
Use casesSuitable for workshop trolleys, factory carts, handling equipment, workbenches, and general industrial movement on concrete or mixed factory floors.
Material notesThe Elastic Rubber tread and PA6 core support shock absorption and low-noise movement, low rolling resistance, high hardness, and chemical resistance.
Range100-125 mm wheel dia. / 160-200 kg load
MaterialTread: Elastic Rubber / Core: PA6
ApplicationIndustrial Castor
Art No.Wheel Dia. (mm)Overall Height (mm)Tread MaterialCore MaterialLoad Capacity (kg)BearingWheel Width (mm)Hub Length (mm)Top Plate Size (mm)Plate Hole Centres (mm)Plate Hole Dia. (mm)Bolt Hole Dia. (mm)Fork Width (mm)Housing Thickness (mm)Available Colors
I.SW02.R13.100100130Elastic RubberPA6160Roller Bearing50105X8580X609503.0/3.0Black, Blue, Grey
I.SW02.R13.125125156Elastic RubberPA6200Roller Bearing50105X8580X609503.0/3.0Black, Blue, Grey
