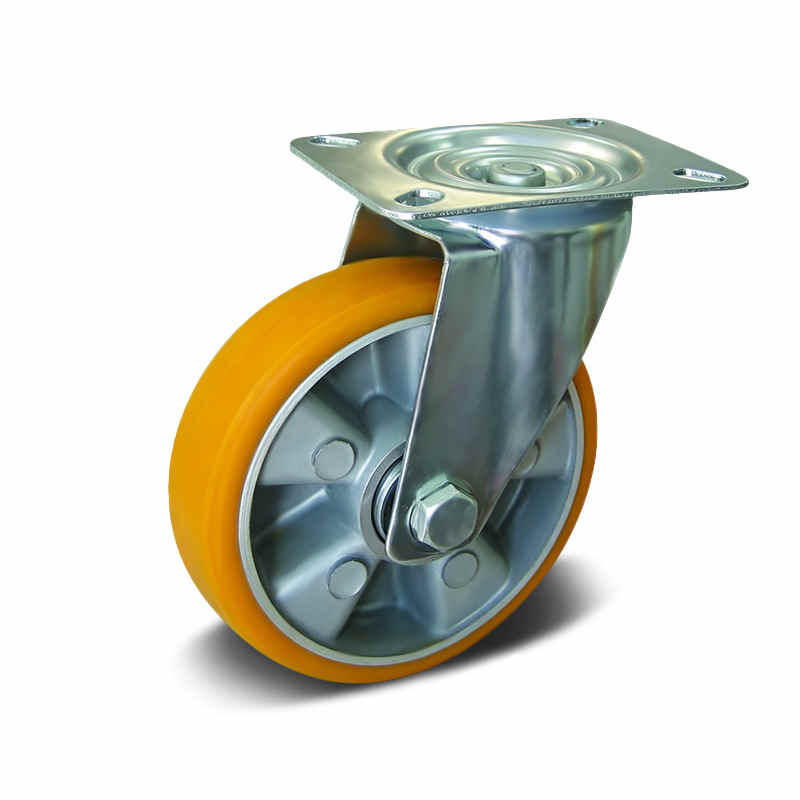

Elastic Rubber and PU with Cast Iron and Aluminum Core Top Plate Swivel Industrial Castor, 80-250mm, 100-300kg

Series / Art No.I.SW01.B51 / I.SW01.B61 / I.SW01.B52
Key FeaturesStandard industrial castor with Elastic Rubber/PU tread and Cast Iron/Aluminum core for workshop trolleys, factory carts, handling equipment, and workbenches. Designed for shock absorption and quiet movement with dependable daily load performance.
Wheel Dia.80-250 mm
Load Capacity100-300 kg
MaterialElastic Rubber/PU
Inquiry Now

Product Specification

OverviewElastic Rubber and PU with Cast Iron and Aluminum Core Top Plate Swivel Industrial Castor, 80-250mm, 100-300kg covering 80-250 mm wheel diameters and 100-300 kg load capacity.
Use casesSuitable for workshop trolleys, factory carts, handling equipment, workbenches, and general industrial movement on concrete or mixed factory floors.
Material notesThe Elastic Rubber/PU tread and Cast Iron/Aluminum core support shock absorption and low-noise movement, wear resistance, oil resistance, and ssmooth cushioned movement.
Range80-250 mm wheel dia. / 100-300 kg load
MaterialTread: Elastic Rubber/PU / Core: Cast Iron/Aluminum
ApplicationIndustrial Castor
Art No.Wheel Dia. (mm)Overall Height (mm)Tread MaterialCore MaterialLoad Capacity (kg)BearingWheel Width (mm)Hub Length (mm)Top Plate Size (mm)Plate Hole Centres (mm)Plate Hole Dia. (mm)Bolt Hole Dia. (mm)Fork Width (mm)Housing Thickness (mm)Available Colors
I.SW01.B51.08080106PUAluminium100Ball Bearing25105x8080x609
I.SW01.B51.100100128PUAluminium120Ball Bearing30105x8080x609
I.SW01.B51.125125156PUAluminium150Ball Bearing37105x8080x609
I.SW01.B51.150150190PUAluminium200Ball Bearing37135x110105x809
I.SW01.B51.160160195PUAluminium200Ball Bearing40135x110105x8011
I.SW01.B51.180180218PUAluminium250Ball Bearing45135x110105x8011
I.SW01.B51.200200235PUAluminium250Ball Bearing50135x110105x8011
I.SW01.B51.250250290PUAluminium300Ball Bearing50135x110105x8011
I.SW01.B61.08080106PUCast Iron100Ball Bearing25105x8080x609
I.SW01.B61.100100128PUCast Iron120Ball Bearing30105x8080x609
I.SW01.B61.125125156PUCast Iron150Ball Bearing37105x8080x609
I.SW01.B61.150150190PUCast Iron200Ball Bearing37135x110105x809
I.SW01.B61.160160195PUCast Iron200Ball Bearing40135x110105x8011
I.SW01.B61.180180218PUCast Iron250Ball Bearing45135x110105x8011
I.SW01.B61.200200235PUCast Iron250Ball Bearing50135x110105x8011
I.SW01.B61.250250290PUCast Iron300Ball Bearing50135x110105x8011
I.SW01.B52.08080106Elastic RubberAluminium100Ball Bearing25105x8080x609
I.SW01.B52.100100128Elastic RubberAluminium120Ball Bearing30105x8080x609
I.SW01.B52.125125156Elastic RubberAluminium150Ball Bearing37105x8080x609
I.SW01.B52.150150190Elastic RubberAluminium200Ball Bearing37135x110105x809
I.SW01.B52.160160195Elastic RubberAluminium200Ball Bearing40135x110105x8011
I.SW01.B52.180180218Elastic RubberAluminium250Ball Bearing45135x110105x8011
I.SW01.B52.200200235Elastic RubberAluminium250Ball Bearing50135x110105x8011
I.SW01.B52.250250290Elastic RubberAluminium300Ball Bearing50135x110105x8011
