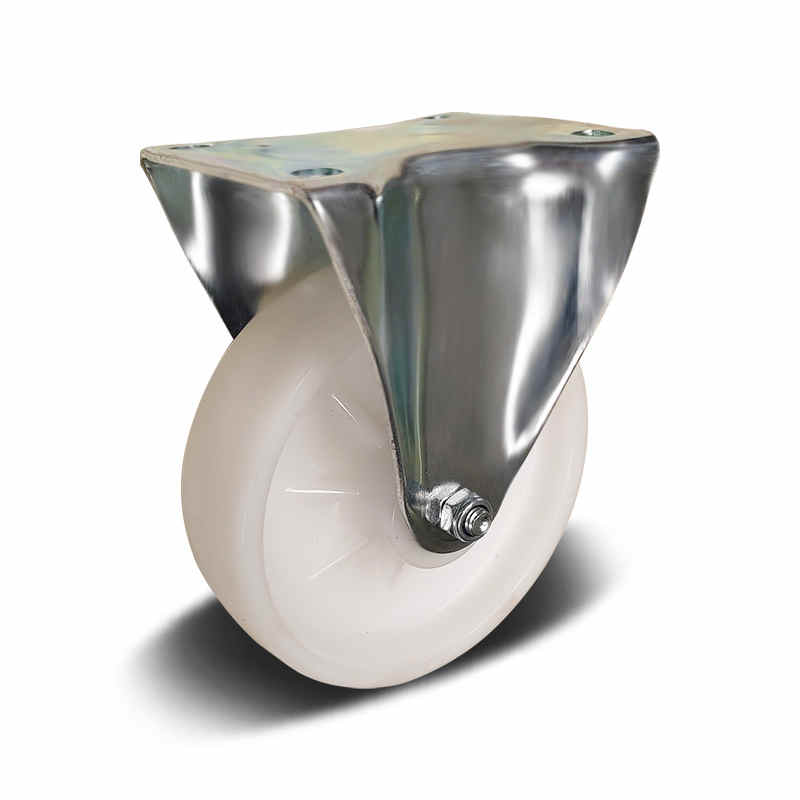

PA6 Wheel Top Plate Fixed Industrial Castor, 100-125mm, 200-250kg

Series / Art No.I.FX02.R30.100; I.FX02.R30.125
Key FeaturesStandard industrial castor with PA6 tread and PA6 core for workshop trolleys, factory carts, handling equipment, and workbenches. Designed for low rolling resistance and chemical resistance with dependable daily load performance.
Wheel Dia.100-125 mm
Load Capacity200-250 kg
MaterialPA6
Inquiry Now

Product Specification

OverviewPA6 Wheel Top Plate Fixed Industrial Castor, 100-125mm, 200-250kg covering 100-125 mm wheel diameters and 200-250 kg load capacity.
Use casesSuitable for workshop trolleys, factory carts, handling equipment, workbenches, and general industrial movement on concrete or mixed factory floors.
Material notesThe PA6 tread and PA6 core support low rolling resistance, high hardness, and chemical resistance.
Range100-125 mm wheel dia. / 200-250 kg load
MaterialTread: PA6 / Core: PA6
ApplicationIndustrial Castor
Art No.Wheel Dia. (mm)Overall Height (mm)Tread MaterialCore MaterialLoad Capacity (kg)BearingWheel Width (mm)Hub Length (mm)Top Plate Size (mm)Plate Hole Centres (mm)Plate Hole Dia. (mm)Bolt Hole Dia. (mm)Fork Width (mm)Housing Thickness (mm)Available Colors
I.FX02.R30.100100130PA-200Roller Bearing50105X8580X609503Black, White
I.FX02.R30.125125156PA-250Roller Bearing50105X8580X609503Black, White
