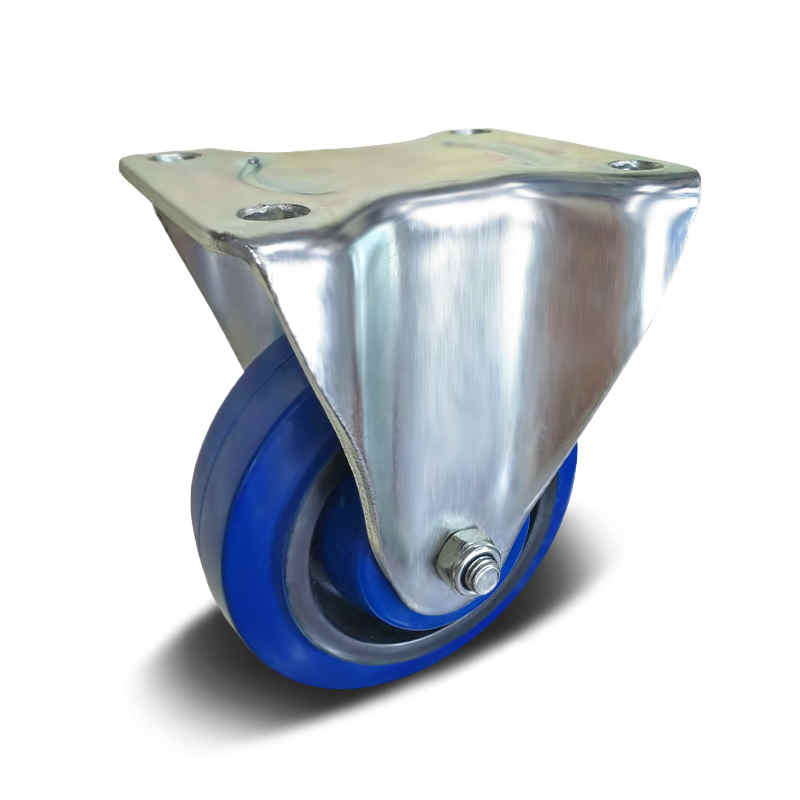

Elastic Rubber with PP and Aluminum Core Top Plate Fixed Industrial Castor, 100-125mm, 160-200kg

Series / Art No.I.FX02.R13 / I.FX02.R10 / I.FX02.B62
Key FeaturesStandard industrial castor with Elastic Rubber tread and PP/Aluminum core for workshop trolleys, factory carts, handling equipment, and workbenches. Designed for shock absorption and quiet movement with dependable daily load performance.
Wheel Dia.100-125 mm
Load Capacity160-200 kg
MaterialElastic Rubber
Inquiry Now

Product Specification

OverviewElastic Rubber with PP and Aluminum Core Top Plate Fixed Industrial Castor, 100-125mm, 160-200kg covering 100-125 mm wheel diameters and 160-200 kg load capacity.
Use casesSuitable for workshop trolleys, factory carts, handling equipment, workbenches, and general industrial movement on concrete or mixed factory floors.
Material notesThe Elastic Rubber tread and PP/Aluminum core support shock absorption and low-noise movement.
Range100-125 mm wheel dia. / 160-200 kg load
MaterialTread: Elastic Rubber / Core: PP/Aluminum
ApplicationIndustrial Castor
Art No.Wheel Dia. (mm)Overall Height (mm)Tread MaterialCore MaterialLoad Capacity (kg)BearingWheel Width (mm)Hub Length (mm)Top Plate Size (mm)Plate Hole Centres (mm)Plate Hole Dia. (mm)Bolt Hole Dia. (mm)Fork Width (mm)Housing Thickness (mm)Available Colors
I.FX02.R13.100100132Elastic RubberPP160Roller Bearing32105x8580x609
I.FX02.R13.100100132Elastic RubberPP160Roller Bearing32135x110105x809
I.FX02.R13.125125157Elastic RubberPP200Roller Bearing35105x8580x609
I.FX02.R13.125125157Elastic RubberPP200Roller Bearing35135x110105x809
I.FX02.R10.100100132PP-160Roller Bearing32105x8580x609
I.FX02.R10.100100132PP-160Roller Bearing32135x110105x809
I.FX02.R10.125125157PP-200Roller Bearing35105x8580x609
I.FX02.R10.125125157PP-200Roller Bearing35135x110105x809
I.FX02.B62.100100132Elastic RubberAluminium160Ball Bearing32105x8580x609
I.FX02.B62.100100132Elastic RubberAluminium160Ball Bearing32135x110105x809
I.FX02.B62.125125157Elastic RubberAluminium200Ball Bearing35105x8580x609
I.FX02.B62.125125157Elastic RubberAluminium200Ball Bearing35135x110105x809
