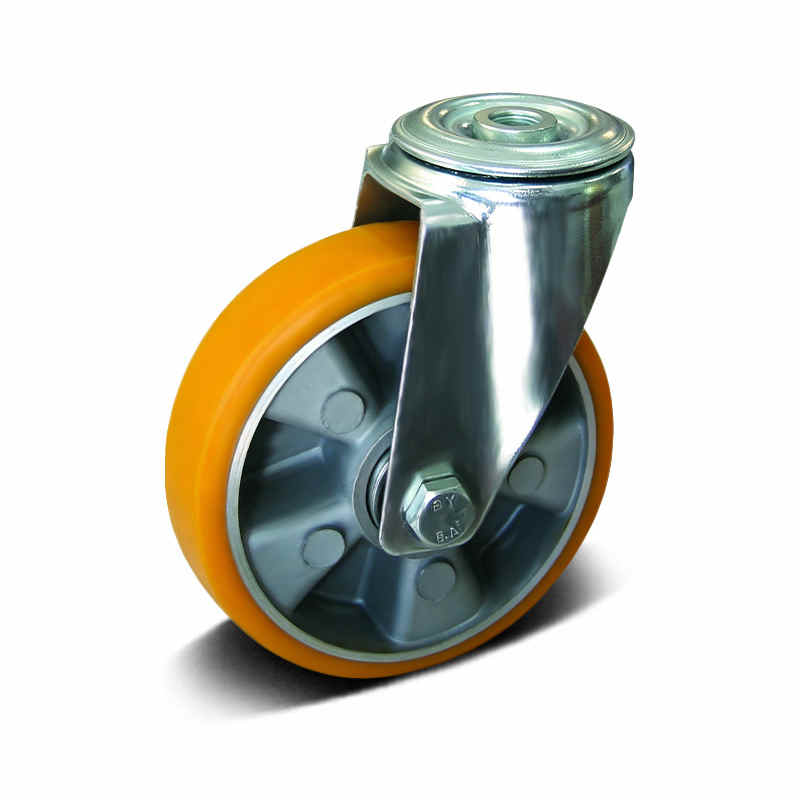

Elastic Rubber and PU with Cast Iron and Aluminum Core Bolt Hole Swivel Industrial Castor, 80-250mm, 100-300kg

Series / Art No.I.BH01.B51 / I.BH01.B61 / I.BH01.B52

Key FeaturesStandard industrial castor with Elastic Rubber/PU tread and Cast Iron/Aluminum core for workshop trolleys, factory carts, handling equipment, and workbenches. Designed for shock absorption and quiet movement with dependable daily load performance.

Wheel Dia.80-250 mm

Load Capacity100-300 kg

MaterialElastic Rubber/PU

Inquiry Now

Product Specification

OverviewElastic Rubber and PU with Cast Iron and Aluminum Core Bolt Hole Swivel Industrial Castor, 80-250mm, 100-300kg covering 80-250 mm wheel diameters and 100-300 kg load capacity.

Use casesSuitable for workshop trolleys, factory carts, handling equipment, workbenches, and general industrial movement on concrete or mixed factory floors.

Material notesThe Elastic Rubber/PU tread and Cast Iron/Aluminum core support shock absorption and low-noise movement, wear resistance, oil resistance, and ssmooth cushioned movement.

Range80-250 mm wheel dia. / 100-300 kg load

MaterialTread: Elastic Rubber/PU / Core: Cast Iron/Aluminum

ApplicationIndustrial Castor

Art No.	Wheel Dia. (mm)	Overall Height (mm)	Tread Material	Core Material	Load Capacity (kg)	Bearing	Wheel Width (mm)	Bolt Hole Dia. (mm)
I.BH01.B51.080	80	106	PU	Aluminium	100	Ball Bearing	25	12.5
I.BH01.B51.100	100	128	PU	Aluminium	120	Ball Bearing	30	12.5
I.BH01.B51.125	125	156	PU	Aluminium	150	Ball Bearing	37	12.5
I.BH01.B51.150	150	190	PU	Aluminium	200	Ball Bearing	37	12.5
I.BH01.B51.160	160	195	PU	Aluminium	200	Ball Bearing	40	12.5
I.BH01.B51.180	180	218	PU	Aluminium	250	Ball Bearing	45	12.5
I.BH01.B51.200	200	235	PU	Aluminium	250	Ball Bearing	50	12.5
I.BH01.B51.250	250	290	PU	Aluminium	300	Ball Bearing	50	12.5
I.BH01.B61.080	80	106	PU	Cast Iron	100	Ball Bearing	25	12.5
I.BH01.B61.100	100	128	PU	Cast Iron	120	Ball Bearing	30	12.5
I.BH01.B61.125	125	156	PU	Cast Iron	150	Ball Bearing	37	12.5
I.BH01.B61.150	150	190	PU	Cast Iron	200	Ball Bearing	37	12.5
I.BH01.B61.160	160	195	PU	Cast Iron	200	Ball Bearing	40	12.5
I.BH01.B61.180	180	218	PU	Cast Iron	250	Ball Bearing	45	12.5
I.BH01.B61.200	200	235	PU	Cast Iron	250	Ball Bearing	50	12.5
I.BH01.B61.250	250	290	PU	Cast Iron	300	Ball Bearing	50	12.5
I.BH01.B52.080	80	106	Elastic Rubber	Aluminium	100	Ball Bearing	25	12.5
I.BH01.B52.100	100	128	Elastic Rubber	Aluminium	120	Ball Bearing	30	12.5
I.BH01.B52.125	125	156	Elastic Rubber	Aluminium	150	Ball Bearing	37	12.5
I.BH01.B52.150	150	190	Elastic Rubber	Aluminium	200	Ball Bearing	37	12.5
I.BH01.B52.160	160	195	Elastic Rubber	Aluminium	200	Ball Bearing	40	12.5
I.BH01.B52.180	180	218	Elastic Rubber	Aluminium	250	Ball Bearing	45	12.5
I.BH01.B52.200	200	235	Elastic Rubber	Aluminium	250	Ball Bearing	50	12.5
I.BH01.B52.250	250	290	Elastic Rubber	Aluminium	300	Ball Bearing	50	12.5
