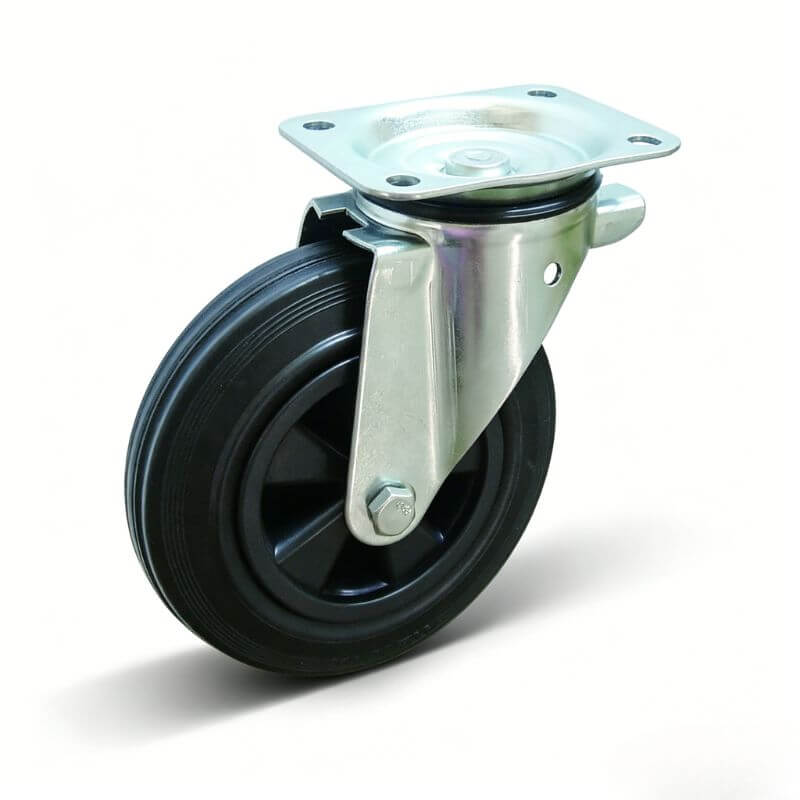

G1 Series Rubber/Elastic Rubber Garbage Bin Castor with PP/Metal Core – Top Plate Swivel, 100-200mm

Series / Art No.G.SW01.R11 / G.SW01.R40 / G.SW01.R13
Key FeaturesDurable garbage bin castor with Rubber/Elastic Rubber tread and PP/Metal core for outdoor waste containers, collection bins, and rough service routes. Designed for shock absorption and quiet movement in wet, uneven, and frequently moved conditions.
Wheel Dia.100-200 mm
Load Capacity80-250 kg
MaterialRubber/Elastic Rubber
Inquiry Now

Product Specification

OverviewG1 Series Rubber/Elastic Rubber Garbage Bin Castor with PP/Metal Core - Top Plate Swivel, 100-200mm covering 100-200 mm wheel diameters and 80-250 kg load capacity.
Use casesSuitable for outdoor waste containers, collection bins, refuse handling routes, and rough service environments where stable movement is required.
Material notesThe Rubber/Elastic Rubber tread and PP/Metal core support shock absorption and low-noise movement.
Range100-200 mm wheel dia. / 80-250 kg load
MaterialTread: Rubber/Elastic Rubber / Core: PP/Metal
ApplicationGarbage Bin Castor
Art No. Wheel Dia. (mm) Overall Height (mm) Tread Material Core Material Load Capacity (kg) Bearing Type Tread Width (mm) Top Plate Size (mm) Plate Hole Centres (mm) Plate Hole Dia. (mm)
G.SW01.R11.100 100 145 Rubber PP 80 Roller Bearing 50 135x110 105x80 12
G.SW01.R11.125 125 162 Rubber PP 100 Roller Bearing 50 135x110 105x80 12
G.SW01.R11.160 160 200 Rubber PP 135 Roller Bearing 50 135x110 105x80 12
G.SW01.R11.200 200 235 Rubber PP 200 Roller Bearing 50 135x110 105x80 12
G.SW01.R40.100 100 145 Rubber Metal 80 Roller Bearing 50 135x110 105x80 12
G.SW01.R40.125 125 162 Rubber Metal 100 Roller Bearing 50 135x110 105x80 12
G.SW01.R40.160 160 200 Rubber Metal 135 Roller Bearing 50 135x110 105x80 12
G.SW01.R40.200 200 235 Rubber Metal 200 Roller Bearing 50 135x110 105x80 12
G.SW01.R13.100 100 145 Elastic Rubber PP 120 Roller Bearing 50 135x110 105x80 12
G.SW01.R13.125 125 162 Elastic Rubber PP 150 Roller Bearing 50 135x110 105x80 12
G.SW01.R13.160 160 200 Elastic Rubber PP 200 Roller Bearing 50 135x110 105x80 12
G.SW01.R13.200 200 235 Elastic Rubber PP 250 Roller Bearing 50 135x110 105x80 12
