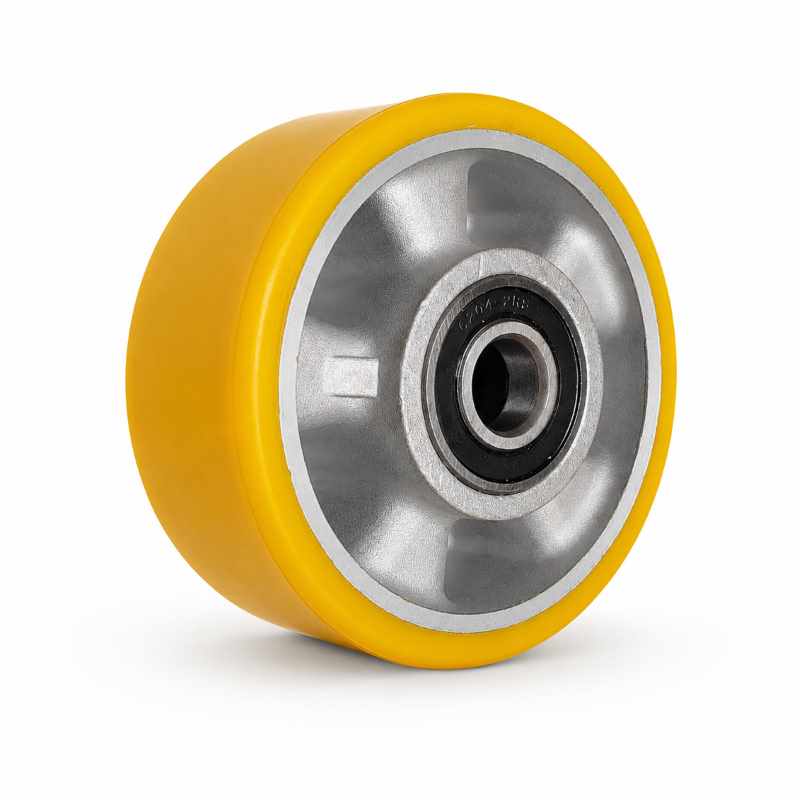

125-200mm Orange PU/Aluminium Core Wheel – Ball Bearing – New Series

Series / Art No.B51.125; B51.160; B51.200
Key Features125-200 mm sizes support larger trolleys, workshop equipment and heavier industrial handling. PU tread combines floor protection with high wear resistance, oil resistance and stable loaded movement. Aluminium rim/core construction supports the tread and improves wheel stability under load. Known load options cover 400-600 kg where load data is provided in the catalogue. Ball Bearing options are available for the required rolling resistance and service conditions. This item is from the New Series Supplement and uses the supplement image set where available.
Wheel Dia.125-200 mm
Load Capacity400-600 kg
MaterialPU
Inquiry Now

Product Specification

Overview125-200mm Orange PU/Aluminium Core Wheel - Ball Bearing - New Series for castor wheel replacement, OEM assembly and trolley wheel applications.
Range125-200 mm wheel dia. / 400-600 kg load
MaterialTread: PU / Core: Aluminium
ApplicationWheel Only
Art No.Wheel Dia. (mm)Hub Length (mm)Load Capacity (kg)Tread MaterialCore/Rim MaterialColourBearing TypeNote
B51.12512561400PUAluminiumOrange; YellowBall BearingNew Series Supplement
B51.16016061500PUAluminiumOrange; YellowBall BearingNew Series Supplement
B51.20020061600PUAluminiumOrange; YellowBall BearingNew Series Supplement
